HDPE Monofilament Virgin Ropes

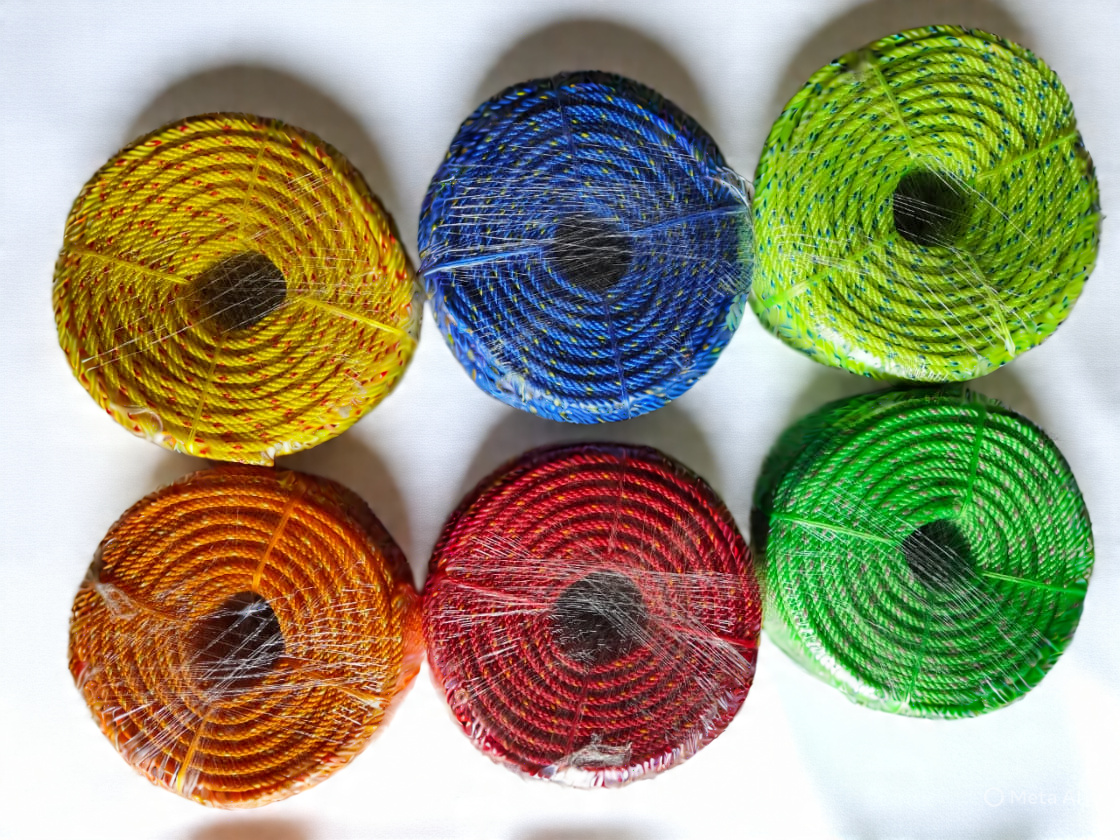

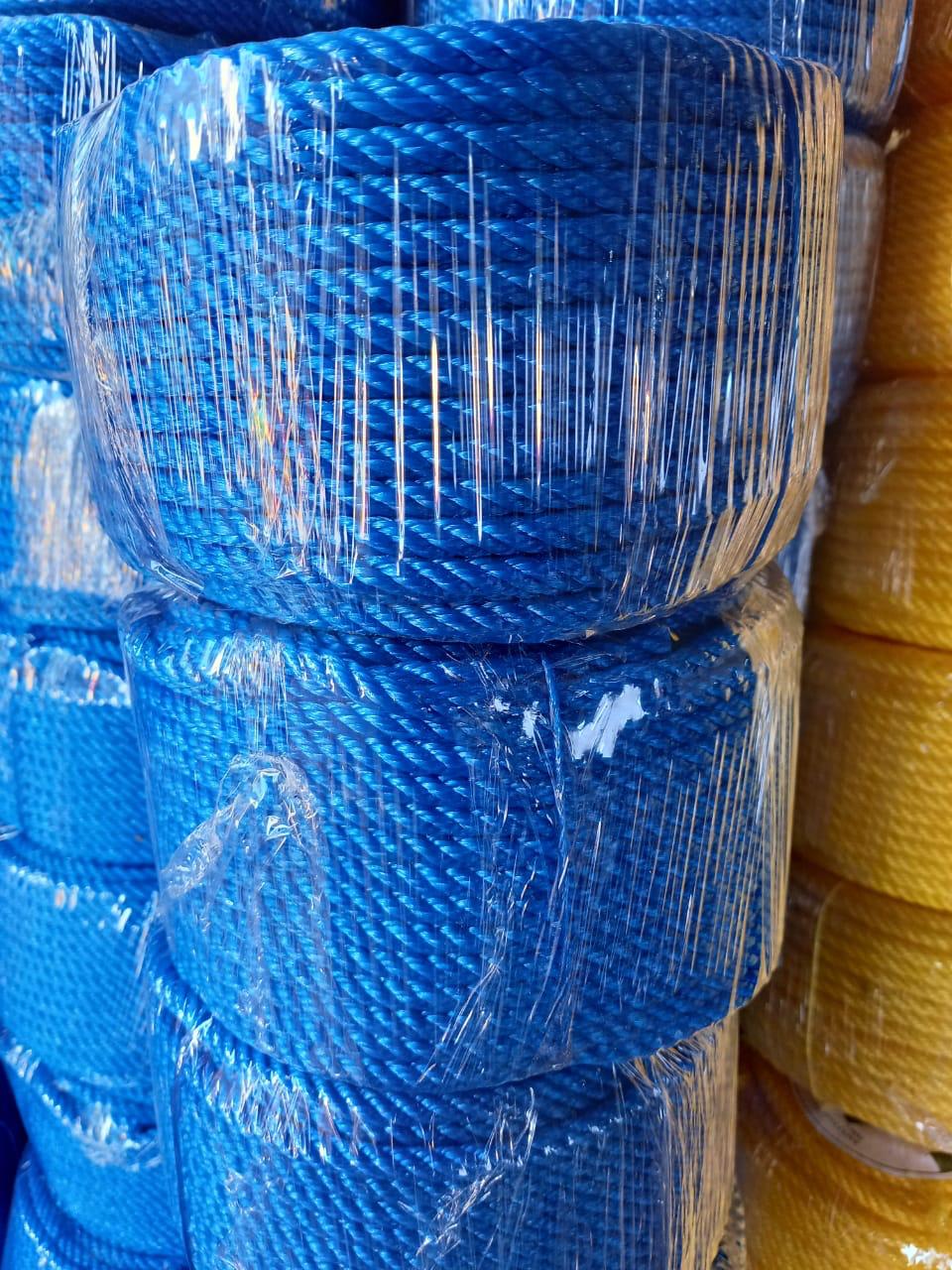

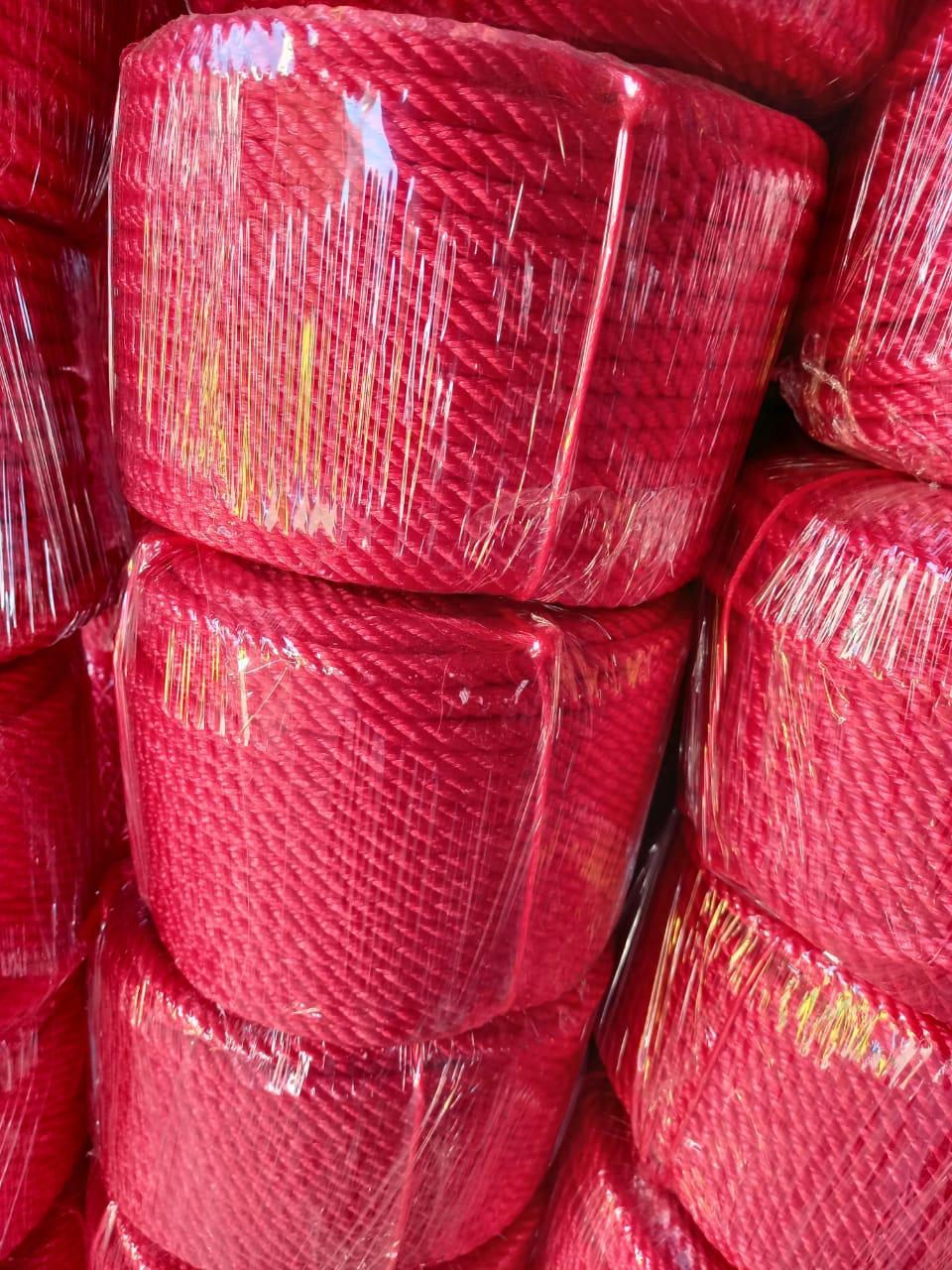

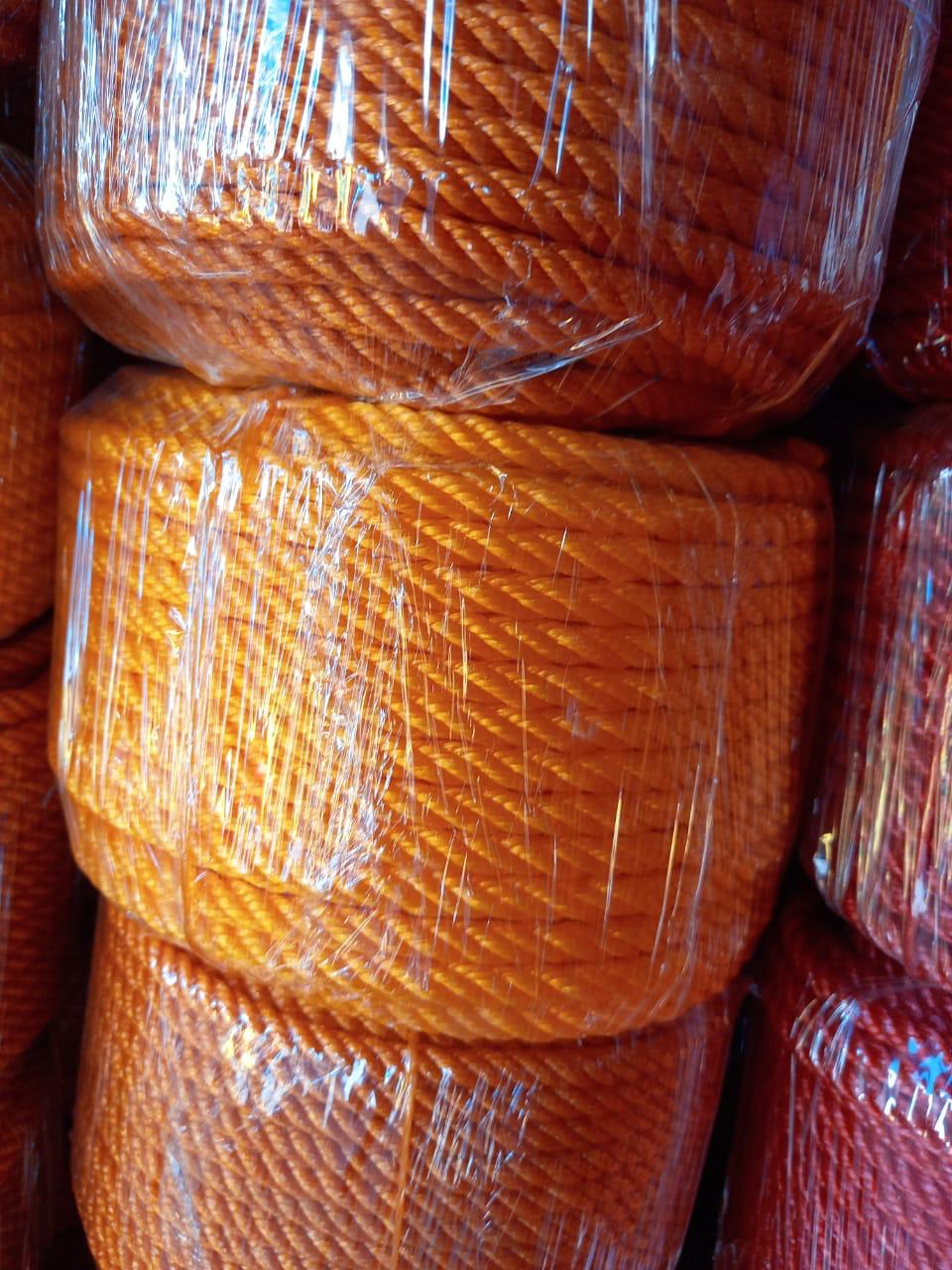

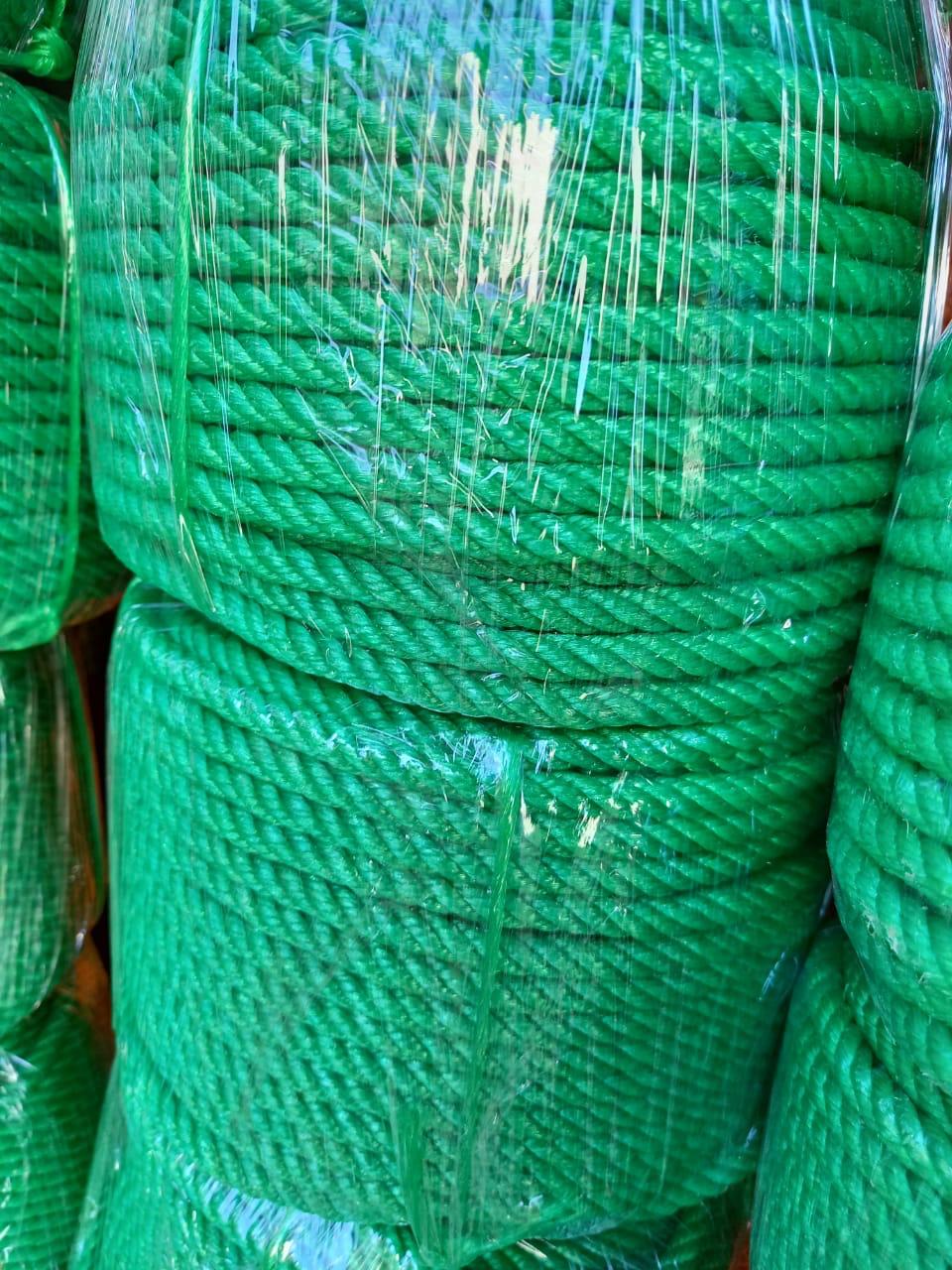

HDPE ROPE
Description
Premium high-density polyethylene rope available in 5MM to 28MM sizes with 3-strand and 4-strand construction. Features Z-twister and S-twister options with excellent strength and durability.
Features
- Available in 5MM to 28MM sizes
- 3-Strand & 4-Strand construction
- Z-Twister and S-Twister options
- Minimal water absorption (~0%)
- High melting point (165°C)
- UV resistant
- Chemical resistant
Major Usage
- Fishing
- Industrial use
- Shipping
- Domestic Purpose
- Construction
- Seafaring
Technical Specifications
Size Available:5MM to 28MM
Rope Construction:3-Strand & 4-Strand 'Z' Twister, 'S' Twister
Water Absorbent:~0%
Melting Point:165°C
Allowed Tolerance:5MM to 28MM = +/-8%
Size Chart
| Rope Size (diameter) in mm | Rope Size (diameter) in Inch | Rope Circumference (mm) | Rope Circumference (inch) | Weight/meter (g/m) | Runnage (m/kg) | kg/220 meter | Breaking Strength (kg) |
|---|---|---|---|---|---|---|---|
| 2 | 3/38 | 6.28 | 1/4 | 1.82 | 549.45 | 0.40 | - |
| 4 | 1/6 | 12.56 | 1/2 | 7.27 | 137.55 | 1.60 | 214 |
| 6 | 1/4 | 18.84 | 3/4 | 16.36 | 61.12 | 3.60 | 620 |
| 8 | 1/3 | 25.12 | 0.99 | 29.09 | 34.38 | 6.40 | 1060 |
| 10 | 2/5 | 31.40 | 1.24 | 45.45 | 22.00 | 10.00 | 1560 |
| 12 | 1/2 | 37.68 | 1.48 | 65.45 | 15.28 | 14.40 | 2210 |
| 14 | 5/9 | 43.96 | 1.73 | 89.09 | 11.22 | 19.60 | 3050 |
| 16 | 5/8 | 50.24 | 1.98 | 116.36 | 8.59 | 25.60 | 3770 |
| 18 | 5/7 | 56.52 | 2.23 | 147.27 | 6.79 | 32.40 | 4810 |
| 20 | 4/5 | 62.80 | 2.47 | 181.82 | 5.50 | 40.00 | 5800 |
| 22 | 6/7 | 69.08 | 2.72 | 220.00 | 4.55 | 48.40 | 6960 |
| 24 | 17/18 | 75.36 | 2.97 | 261.82 | 3.82 | 57.60 | 8130 |
| 26 | 1.02 | 81.64 | 3.21 | 307.27 | 3.25 | 67.60 | 9404 |
| 28 | 1.10 | 87.92 | 3.46 | 356.36 | 2.81 | 78.40 | 10700 |
| 30 | 1.18 | 94.20 | 3.71 | 409.09 | 2.44 | 90.00 | 12220 |
| 32 | 1.26 | 100.48 | 3.96 | 465.45 | 2.15 | 102.40 | 13500 |
